High Frequency Test Sieve Shaker Sieve Analysis Machine 3000 Times/Min

High Frequency Test Sieve Shaker Sieve Analysis Machine 3000 Times/Min

  • High Frequency Test Sieve Shaker Sieve Analysis Machine 3000 Times/Min
  • High Frequency Test Sieve Shaker Sieve Analysis Machine 3000 Times/Min
High Frequency Test Sieve Shaker Sieve Analysis Machine 3000 Times/Min
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AT-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 1~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Type: Electromagnetic Vibration Type Main Product: Yes, Only Designed And Made By Ourselves In China
Purpose: For Both Dry And Wet Screening Motion: Three Dimensional Vibration Motion
Sieve Number: 1~8 Pcs Surface Treatment: Stainless Steel Wire Drawing
Frequency: 3000 Times/min Digital Display: YES
Time Adjustment: 0~99 Minutes Characteristics: High Frequency, Low Noise, Light Weight, Easy To Operate
High Light:

lab sieve shaker

,

sieve testing equipment

High Frequency Test Sieve Shaker Sieve Analysis Machine 3000 Times/Min

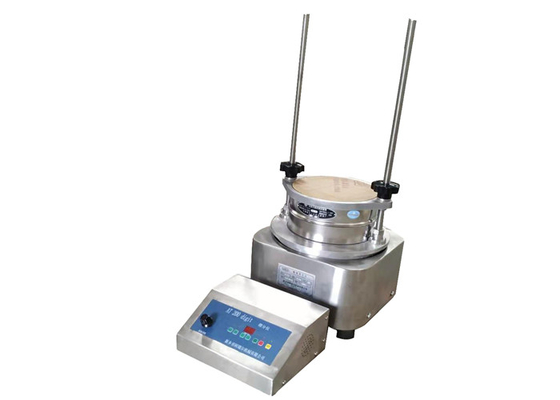

Overview of High Frequency Three Dimensional Electromagnetic Vibration Test Sieve Shaker:

Our AT-200 High Frequency Three Dimensional Electromagnetic Vibration Test Sieve Shaker can be used for both dry and wet screening. This sieve shaker does three dimensional vibration. It is the best equipment for laboratory particle size inspection and screening on site.

  The AT-200 test sieve shaker is one of our main products. It is only designed and made by our factory at the moment in China. Compared with the same kind of electromagnetic test sieve shaker on the Chinese market, our AT-200 price is a little higher. But the test effect and result are much better than the traditional electromagnetic vibration test sieve shaker. Besides, the body shell adopts stainless steel wire drawing technology, simple and beautiful. So you will get what you pay.

  This device can be widely used in pharmaceutical, metallurgy, food, super hard materials and other industries for particle analysis. It is a simple, efficient and precise screening tool that can reproduce the results of analysis very well.



Technical Parameters of High Frequency Three Dimensional Electromagnetic Vibration Test Sieve Shaker:

NO. Name Unit Data
1 Sieve Number pcs 1~8
2 Screen Diameter mm Ø200 Ø100 Ø75
3 Particle Size mm 0.028~3
4 Noise dB <50
5 Amplitude mm 0~3
6 Vibration Frequency times/min

3000

7 Operating Mode Kind 9
8 Power Supply V;Hz 220; 50
9 Power KW 0.2
10 Weight Kg 30

 Feeding Material for High Frequency Three Dimensional Electromagnetic Vibration Test Sieve Shaker:

1. Max Screening Capacity: 2.5 Kg

2. Max Sieve Tower Weight: 3.2 Kg

3. Max Loading Weight: 5.8 Kg (sample materials + analysis sieves)

4. Max Sieve Tower Height: 460 mm



Features of High Frequency Three Dimensional Electromagnetic Vibration Test Sieve Shaker:

1. With advanced numerical control circuit, the operating parameters such as amplitude, frequency and control time can be accurately adjusted.

2. Low noise, light weight, no need to fix and easy to operate.

3. Suitable for dry screening and wet screening.

4. AT-200 electromagnetic vibration test sieve shaker adopts advanced powerful electromagnetic vibrator to produce optimized three-dimensional vibration, which makes the sieved samples not only vibrate vertically, but also roll over, so that it can make full use of the screen area to achieve the best result that can be reproduced.



It also can be used in Wet Screening by equipping with the inlet and outlet nozzle.
High Frequency Test Sieve Shaker Sieve Analysis Machine 3000 Times/Min 0High Frequency Test Sieve Shaker Sieve Analysis Machine 3000 Times/Min 1

When ordering our AT-200 test sieve shaker, please let me know the voltage, hertz, sieve number, mesh size for each sieve. If you have special requirement for the motor brand, please also tell us in advance.
Item Required Requirement
Motor Brand if special required
Voltage (Single Phase) 220V, 110V, or other?
Hertz 50HZ, or 60HZ ?
Sieve Number 1~8 available
Mesh Size for each sieve



High Frequency Test Sieve Shaker Sieve Analysis Machine 3000 Times/Min 2
